ETP Copper Profile Section

ETP Copper Profile Section Manufacturers, Suppliers, Exporters

Since quality has consistently been the greatest concern with respect to copper profile area, that is the reason we have brought a profoundly effective and thermostatically adjusted ETP Copper Profile Section. We have an incredible assortment of electrolytic intense pitch copper segments with fitting determination and measurements. The business copper area gets utilized in the creation of items, for example, wire, pole, bar, strip, and plate just as a sheet. Copper is broadly been utilized the material in different applications on account of the high consumption opposition, conductivity, administration life, and usefulness If you are looking through such copper profile areas then you can without much of a stretch get it from us.

The electrolytic intense pitch or ETP copper segment are utilized in applications, for example, Telecommunications, Architectural, antimicrobials, electrical. A portion of the ordinarily utilized and accessible structures are poles, wires, strips, foils, plates, sheets, pads, billets for expulsion and producing, segment, and profiles. The accessible evaluations are ASTM B152, ASTM B187, DIN 2.0060, BS 2874 C101, and ASTM B124, BS 2875 C101, C11000, EN CW004A, and BS 2870 C101.

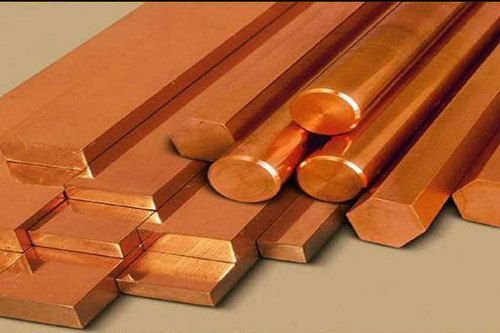

The copper profile areas get manufactured and made utilizing prevalent and great copper grade, with firm norm, in consistence in various completes, tempers, and shapes. The accessible shape and finish alternatives are a hexagon, empty shapes, squares, bramble bars, bars, and cylinders. These are accessible copper structures with new copper expulsion innovation of high ETP evaluating.

Our endeavor likewise makes these items in creation attributes and specialized properties that get utilized at phases of expulsion in edge finish decisions and various sizes according to customer interest. Different applications in which it gets utilized are autos, transformers, electrical switch terminals, electrical holders, safeguard enterprises, clips, railroads, and change gears just as earthing pole electrical designing creation.

ETP Copper Profile / Section Specifications :

Thickness :- Extruded: 4mm Min.
Drawn: 3mm Min.
Length :- Extruded: 50ft Max weight limit upto 55Kgs
Drawn: 10ft Max. weight limit upto 55Kgs
Tolerance :- Extruded: +0.30" Min. on any dimension
Drawn: +0.005 Min. on any dimension
Circumscribing circle diameter :- For Extruded Product: 4.125" Max
For Drawn Product: 4" Max Cross Sectional - 1/2 sq. Inch minimum.
Specifications (ETP) :- ASTM B133, ASTM B124, ASTM B187, IS: 191, 613 & 1897
Standard :- EN 13605:2016, As Per IS -4171, 1s-288,IS-613 Standards
Cross sections :- 80 mm2 to 150 mm2
Conductivity :- Above 97% IACS min in Half Hard
Above 99.95% in annealed
Purity :- Copper - 99.9%
Specifications (OFC) :- Copper: 99.99%, O
2: < 10 ppm
Copper: 99.90%, O
2: < 100 ppm
Shapes :- Profiled Tubes and Rods in Reeded, Oval, Rectangle, Polygon, hex, round, Square and Twisted shape, L-shape, Y-shape, H-shape, etc.

ETP Copper Profile / Section Chemical Composition :

Nation China USA U.K Germany Japan
Standard No. GB ASTM B170 BS 6017 DIN 1787 JIS H2123
Classification TU0 TU1 Grade1 C10100 Grade 2 C10200 Cu-OFE C103 Cu-OF C110 OF-Cu 2.0040 Grade1 C1011 Grade2 C1020
Chemical Composition Cu+Ag (%Min) 99.99 99.9 99.99 99.95 99.99 99.95 99.95 99.99 99.98
O2 P (PPM) 10Max 3max 10max N/A 5Max 3Max 10Max N/A 10Max 3Max NA NA NA NA 10Max 3max 10max N/A

ETP Copper Profile / Section Design Standards :

European Standard Polish Standard German Standard
EN 12167:2016 EN 13600:2016 PN 75/H93623 DIN 40500 DIN 17672
EN 13605:2016
Temper Cu-DHP Cu-ETP M1E, M2R E-Cu57 SF-Cu
extruded M - pp p -
drawn M D pc zh zh
soft - R200/H035 r F20 F20
half hard R240/H065 R240/H065 z4 F25 F24
hard R280/H085 R280/H080 z6 F30 F29
