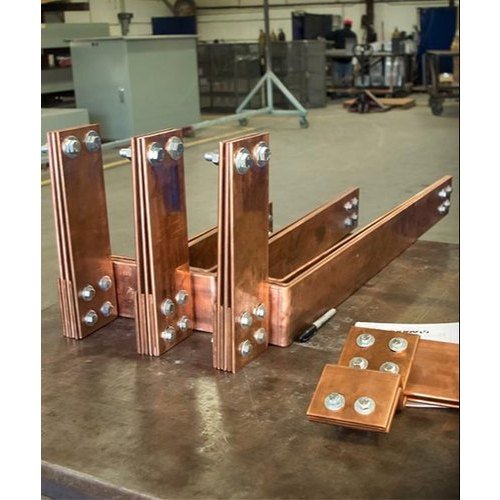

ETP Copper Bus Bars

ETP Copper Bus Bars Manufacturers, Suppliers, Exporters

RCM Copper have picked up an excess of prominence at present in view of offering the wide complete scopes of ETP Copper Bus bars. The thing is 100% unadulterated and is created utilizing prevalent nature of crude materials that are being obtained from the best sellers. According to the essential of the purchaser, the thing offered is changing in an unexpected way. During the hour of creation of copper transport bar, the makers are essentially following different rules set okay with making item successfully. They are additionally considering public and worldwide item standard like ASTM, AISI, JIS, DIN, EN, BS, IS, API, ANSI and so on Interestingly, the item provided is at reasonable rates.

The divider thickness of it is 1mm, 2mm, 3mm, 5mm, and 6mm to 50mm. The width of it is 10mm to 50mm, 10mm to 150mm, 10mm to 100mm, 10mm to 250mm and 10mm to 200mm. The standard particular of it is BS EN 13601:2002 and IS: 613, 191 and 1897. The conductivity of it is 97% above IACS min in the half hard and in tempered above 99.95%. The immaculateness is Cu-99.9%.

The item prior to getting into the hand of purchasers is going through a few tests compulsorily. The tests are to be specific positive material recognizable proof test, pitting opposition test, intergranular erosion test, hardness test, leveling test, erupting test, large scale test, miniature test and so on

The providers are giving maker test accreditation in agreement to EN 10204 3.1/3.2, outsider test report, lab test report, purchasers report and so forth The documentation that they are giving to purchasers is the authentication of beginning, quality affirmation plan, heat treatment graph, fumigation declaration, bundling list and so forth

At the point when goes to the ETP Copper Bus Bars bundling, the thing is painstakingly pressed utilizing wooden boxes, wooden boxes, wooden beds, container boxes. All these guarantee the more noteworthy degree of security to the thing when sent at farther places.

ETP Copper Bus Bars Specifications :

Dimension Details :- Thickness
1 mm (min)
2 mm (min)
3 mm (min)
5 mm (min)
6 mm -50 mm

10 mm - 50 mm
10 mm - 100 mm
10 mm - 150 mm
10 mm - 200 mm
10 mm - 250 mm
Specifications (ETP) :- IS: 191, 613 & 1897, BS EN 13601:2002, ASTM B187
Cross section :- upto 3000 mm²
Standard :- EN 13601: 2002, EN 13602: 2002
Conductivity :- Above 97% IACS min in Half Hard
Above 99.95% in annealed
Purity :- Copper - 99.9%
Specifications (OFC) :- Copper: 99.99%, O
2: < 10 ppm
Copper: 99.90%, O
2: < 100 ppm
Type :- Rectangular, square and any corner radius, Full Round Edge

ETP Copper Bus Bars Chemical Composition :

Nation China USA U.K Germany Japan
Standard No. GB ASTM B170 BS 6017 DIN 1787 JIS H2123
Classification TU0 TU1 Grade1 C10100 Grade 2 C10200 Cu-OFE C103 Cu-OF C110 OF-Cu 2.0040 Grade1 C1011 Grade2 C1020
Chemical Composition Cu+Ag (%Min) 99.99 99.9 99.99 99.95 99.99 99.95 99.95 99.99 99.98
O2 P (PPM) 10Max 3max 10max N/A 5Max 3Max 10Max N/A 10Max 3Max NA NA NA NA 10Max 3max 10max N/A
